Q07023A

Horn
Code: Q07023A

Throath Diameter: 35.5 mm / 1.4″
Dimensions: 250x250x135.5 mm

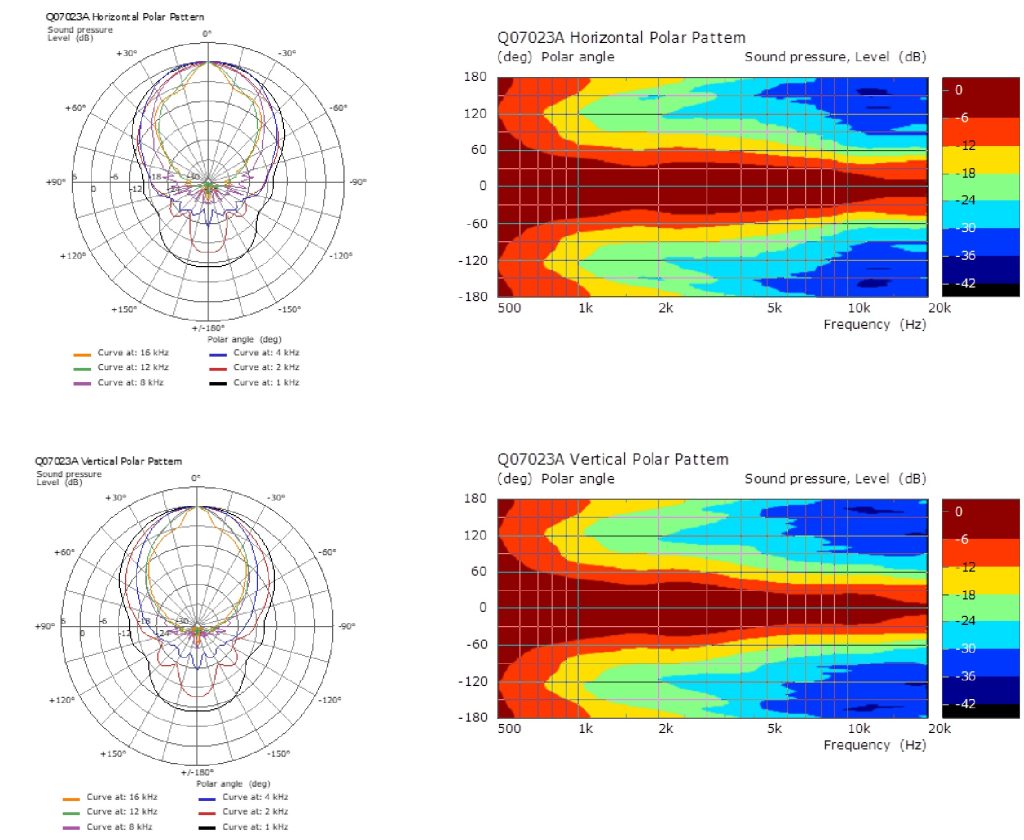

Horizontal Coverage: 80°
Vertical Coverage: 60°

Description

Due to continuing product improvement, the features and the design are subject to change without notice.

Additional information

General Specifications

Throat Diameter	35.5 mm / (1.4")
Cutoff Frequency	0.6 kHz
Net Weight	0.84 Kg
Horizontal Coverage	80°
Vertical Coverage	60°
Material	ABS + Fiberglass

Mounting Information

Shape	square
Overall Dimensions	250x250x135.5 mm
Baffle Cutout Dimensions	200×200 mm
Mounting Holes	8 holes Ø 5.8 mm
