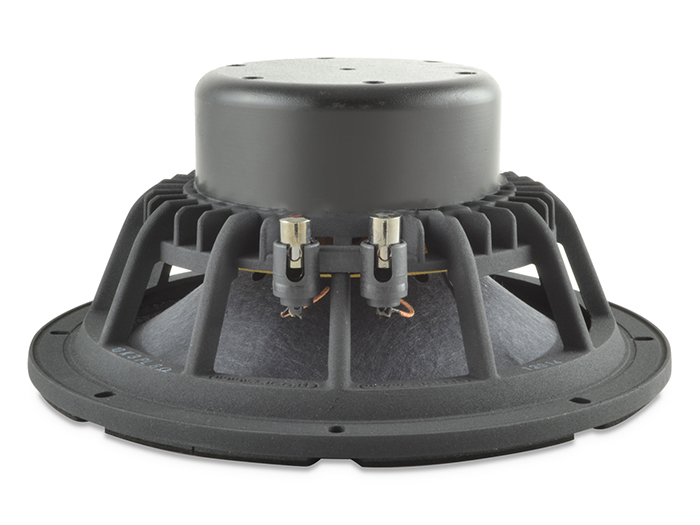

10 K 3 PL

Professional Woofer
Code: Z005840

Nominal overall diameter: 10″
Nominal voice coil diameter: 3″
Magnet material: Neodymium
Basket material: Aluminium Die-Cast
Power: 800 W
Sensitivity: 96.7 dB
Frequency range: 50-3000 Hz



Descrizione



  • Rated Power measured with 2 hours test with pink noise signal, 6dB crest factor, loudspeaker in free air, power calculated on rated Zmin
  • Power on Continuous Program is defined as 3 dB greater than the Rated Power
  • Sensitivity calculated by Thiele and Small parameters, for SPL average in box refer to frequency response
  • Thiele and Small parameters measured with laser system after preconditioning test
  • Xmax measured with respect to a THD of 10%
  • Xvar value corresponding to a decay of the Force Factor, or Compliance, or both, equal to the 50% of the small signal value.
  • Due to continuing product improvement, the features and the design are subject to change without notice.



Informazioni aggiuntive

General Specifications
Nominal Diameter

268 mm / 10 in

Nominal Impedance

8 Ω

Rated Power AES

400 W

Continuos Program Power

800 W

Sensitivity @ 1W/1m

96.7 dB

Voice Coil Diameter

75 mm (3")

Voice Coil Winding Depth

20 mm

Magnetic Gap Depth

10 mm

Flux Density

1.20 T

Magnet Weight

360 g

Net Weight

2.8 Kg

Constructive Characteristics
Magnet Type

Neodymium

Basket Material

Aluminium Die-Cast

Voice Coil Winding Material

Aluminium

Voice Coil Former Material

Kapton

Cone Material

Paper

Cone Treatment

Humidity Resistant Pulp

Surround Material

Treated Cloth

Dust Dome Material

Solid Paper

Mounting Information
Overall Diameter

268 mm

Baffle Cutout Diameter

232 mm

Mounting Holes

8 holes 6×9 on Ø247 mm

Total Depth

128.5 mm

Thiele/Small Parameters
Re

5.2 Ω

Qms

5.02

Qts

0.26

Cms

235 µm/N

Vas

40.0 l

X max

+/- 6.5 mm

N

1.85 %

Fs

50.6 Hz

Qes

0.27

Mms

42.1 g

Bxl

16.05 Tm

Sd

346.4 cm²

X var

+/- 8.5 mm

Le (1KHz)

0.49 mH
